imageopenpolygon
(PHP 7 >= 7.2.0)
imageopenpolygon — Draws an open polygon
Descrição
bool imageopenpolygon
( resource
$image
, array $points
, int $num_points
, int $color
)
imageopenpolygon() draws an open polygon on the given
image. Contrary to imagepolygon(),
no line is drawn between the last and the first point.
Parâmetros
-
image -
Um resource de imagem, retornado por funções de criação de imagens, como imagecreatetruecolor().
-
points -
An array containing the polygon's vertices, e.g.:
points[0] = x0 points[1] = y0 points[2] = x1 points[3] = y1 -
num_points -
Total number of points (vertices).
-
color -
A color identifier created with imagecolorallocate().
Valor Retornado
Retorna TRUE em caso de sucesso ou FALSE em caso de falha.
Exemplos
Exemplo #1 imageopenpolygon() example
<?php
// Create a blank image
$image = imagecreatetruecolor(400, 300);
// Allocate a color for the polygon
$col_poly = imagecolorallocate($image, 255, 255, 255);
// Draw the polygon
imageopenpolygon($image, array(
0, 0,
100, 200,
300, 200
),
3,
$col_poly);
// Output the picture to the browser
header('Content-type: image/png');
imagepng($image);
imagedestroy($image);
?>

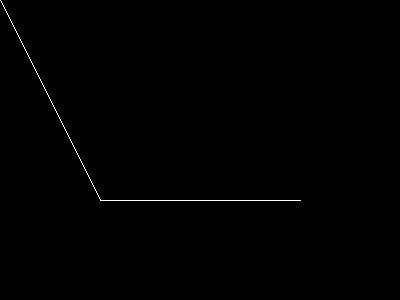

O exemplo acima irá imprimir algo similar à:
