Architecture Overview

This section explains how all the different parts of the driver fit together. From the different language runtimes, through the extensions and to the PHP libraries on top. This new architecture has replaced the old mongo extension. We refer to the new one as the mongodb extension.

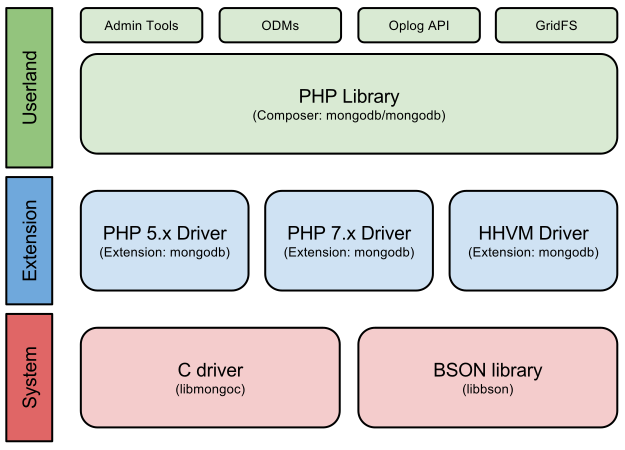

Architecture Diagram

At the top of this stack sits a pure » PHP library, which we will distribute as a Composer package. This library will provide an API similar to what users have come to expect from the old mongo driver (e.g. CRUD methods, database and collection objects, command helpers) and we expect it to be a common dependency for most applications built with MongoDB. This library will also implement common » specifications, in the interest of improving API consistency across all of the » drivers maintained by MongoDB (and hopefully some community drivers, too).

Sitting below that library we have the lower level drivers—one per platform. These extensions will effectively form the glue between PHP and HHVM and our system libraries (» libmongoc and » libbson). These extensions will expose an identical public API for the most essential and performance-sensitive functionality:

By decoupling the driver internals and a high-level API into extensions and PHP libraries, respectively, we hope to reduce our maintainence burden and allow for faster iteration on new features. As a welcome side effect, this also makes it easier for anyone to contribute to the driver. Additionally, an identical public API for these extensions will make it that much easier to port an application across PHP runtimes, whether the application uses the low-level driver directly or a higher-level PHP library.

» GridFS is a great example of why we chose this direction. Although we implemented GridFS in C for our old mongo driver, it is actually quite a high-level specification. Its API is just an abstraction for accessing two collections: files (i.e. metadata) and chunks (i.e. blocks of data). Likewise, all of the syntactic sugar found in the old mongo driver, such as processing uploaded files or exposing GridFS files as PHP streams, can be implemented in pure PHP. Provided we have performant methods for reading from and writing to GridFS' collections – and thanks to our low level extensions, we will – shifting this API to PHP is win-win.

Earlier I mentioned that we expect the PHP library to be a common dependency for most applications, but not all. Some users may prefer to stick to the no-frills API offered by the extensions, or create their own high-level abstraction (akin to » Doctrine MongoDB for the old mongo driver). Future libraries could include a PHP library geared for MongoDB administration, which provides an API for various user management and ops commands. The next major version of » Doctrine MongoDB ODM will likely also sit directly atop the extensions.

While we will continue to maintain and support the old mongo driver and its users for the foreseeable future, we invite everyone to use the next-generation driver and consider it for any new projects going forward. You can find all of the essential components across GitHub and JIRA:

Driver Source Code and JIRA Locations
Project GitHub JIRA
PHP Library » mongodb/mongo-php-library » PHPLIB
PHP 5 and PHP 7 Driver (phongo) » mongodb/mongo-php-driver » PHPC
HHVM Driver (hippo) » mongodb/mongo-hhvm-driver » HHVM

The existing » PHP project in JIRA will remain open for reporting bugs against the old mongo driver, but we would ask that you use the new projects above for anything pertaining to our next-generation drivers.
