imagepolygon

(PHP 4, PHP 5, PHP 7)

imagepolygonDraws a polygon

Description

bool imagepolygon ( resource $image , array $points , int $num_points , int $color )

imagepolygon() creates a polygon in the given image.

Parameters


An image resource, returned by one of the image creation functions, such as imagecreatetruecolor().

points

An array containing the polygon's vertices, e.g.:

points[0] = x0
points[1] = y0
points[2] = x1
points[3] = y1

num_points

Total number of points (vertices).

color

A color identifier created with imagecolorallocate().

Return Values

Returns TRUE on success or FALSE on failure.

Examples

Example #1 imagepolygon() example

<?php
// Create a blank image
$image imagecreatetruecolor(400300);

// Allocate a color for the polygon
$col_poly imagecolorallocate($image255255255);

// Draw the polygon
imagepolygon($image, array(

0,   0,

100200,

300200

),

3,

$col_poly);

// Output the picture to the browser
header('Content-type: image/png');

imagepng($image);
imagedestroy($image);
?>

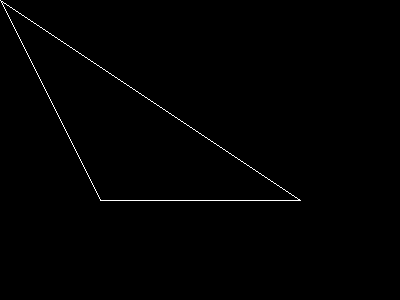

The above example will output something similar to:

Output of example : imagepolygon()
