(PHP 4 >= 4.3.2, PHP 5, PHP 7)
imageantialias — Should antialias functions be used or not
Activate the fast drawing antialiased methods for lines and wired polygons. It does not support alpha components. It works using a direct blend operation. It works only with truecolor images.
Thickness and styled are not supported.
Using antialiased primitives with transparent background color can end with some unexpected results. The blend method uses the background color as any other colors. The lack of alpha component support does not allow an alpha based antialiasing method.
An image resource, returned by one of the image creation functions, such as imagecreatetruecolor().
Whether to enable antialiasing or not.
TRUE on success or
FALSE on failure.
|7.2.0||imageantialias() is now generally available. Formerly it was only available if PHP was compiled with the bundled version of the GD library.|
Example #1 A comparison of two lines, one with anti-aliasing switched on
// Setup an anti-aliased image and a normal image
$aa = imagecreatetruecolor(400, 100);
$normal = imagecreatetruecolor(200, 100);
// Switch antialiasing on for one image
// Allocate colors
$red = imagecolorallocate($normal, 255, 0, 0);
$red_aa = imagecolorallocate($aa, 255, 0, 0);
// Draw two lines, one with AA enabled
imageline($normal, 0, 0, 200, 100, $red);
imageline($aa, 0, 0, 200, 100, $red_aa);
// Merge the two images side by side for output (AA: left, Normal: Right)
imagecopymerge($aa, $normal, 200, 0, 0, 0, 200, 100, 100);
// Output image

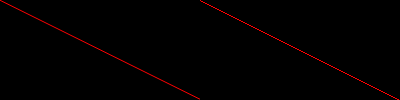

The above example will output something similar to:
